Egg Chicken Automatic Battery Cages Hot Galvanized

    Buy cheap Egg Chicken Automatic Battery Cages Hot Galvanized from wholesalers

    Buy cheap Egg Chicken Automatic Battery Cages Hot Galvanized from wholesalers
    • Buy cheap Egg Chicken Automatic Battery Cages Hot Galvanized from wholesalers
    • Buy cheap Egg Chicken Automatic Battery Cages Hot Galvanized from wholesalers

    Egg Chicken Automatic Battery Cages Hot Galvanized

    Ask Lasest Price
    Brand Name : Hi-hope
    Model Number : Hi-hope Layer System
    Certification : CE, ISO9001, SGS
    Price : USD10000-1000000 per set
    Payment Terms : Western Union
    Supply Ability : 300 houses per year
    Delivery Time : 30-50 days
    • Product Details
    • Company Profile

    Egg Chicken Automatic Battery Cages Hot Galvanized

    China Manufacturer Egg Chicken Automatic Battery Cages


    Hi-hope can offer a complete solutions for your layer farms. Our team can work for you from your layer farm design, house inside equipment layout design, house inside ventilation design, equipment installation guilde , equipment usage training, steel layer house design and material supply & steel layer house installation guide.

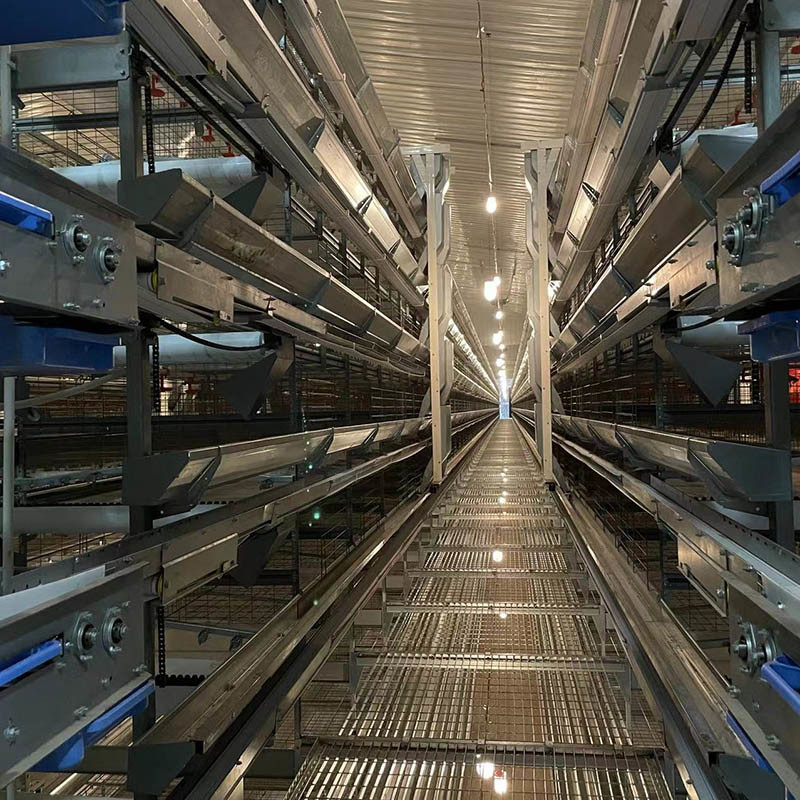

    Automatic H Type Poultry Cage Layer Chicken Battery Cages

    The H frame layer cage system construction and the sections of cages are produced of galvanized sheet and hot dippedgalvanized wires bearing ISO 9001 Quality Certificate. The surface galvanize cover of these materials, are equal to high standards. It is becoming the most popular and good choices to the poultry farms all over the world.

    Egg Chicken Automatic Battery Cages Hot Galvanized

    Layer Cage Features:


    - Cages are manufactured with eighter zinc or aluminum-zinc coating materials of greatly durability.
    - Smooth cage surface without burrs to prevent the birds hurt.
    - Designed cage size ensure every birds with enough living space.
    - Bottom cage is designed with tighter mesh spacing in birds standing area.
    - 8 Degree cage bottom design ensure the eggs roll out smoothly
    - Stable Cage Structures
    - Lower birds mortality low than 5% in whole process, better FCR
    - Easier operation, lower maintinance
    - Feeding with Feed Trolley

    - Eggs Damaging Rate as Low as 0.3%



    Layer Cage Parameters:

    HHLC-1 Model:

    Cage Cell WidthCage Cell DepthCage Cell HeightBirds/CageSpace per bird
    24.5in25.5in20.3in1062.475Layer 15+ Weeks
    30in25.5in16.14in1647.813Pullet 0-15 Weeks

    layer Chicken CagesA(in)B(in)C(in)
    3Tiers101.488.425.2Production
    4Tiers126.6113.625.2Production
    6Tiers204.4191.425.2Production
    8Tiers254.8241.825.2Production


    Hi-hope Layer Cager Advantages:


    1, Different Tiers Supplied Which with High Land Utilization

    1) Reasonable High-density Raising, 10 birds/ cage.

    2) 3-10 Tiers Battery Cage.

    Egg Chicken Automatic Battery Cages Hot Galvanized


    2.Comfortable and Safe Feeding Environment

    1) Uniform Trolley Feeding System.

    2) Deep 'V' Feed Trough with Inner Rim.

    3) The Stainless Steel Nipple Pipe Has Two Lines.

    4) Timely and Effective Manure Remove Methods.

    5) Distance Between Two Sides Cage.

    6) Automatic Ventilation and Temperature Control System.

    7) Automatic Egg Collecting System.

    Egg Chicken Automatic Battery Cages Hot GalvanizedEgg Chicken Automatic Battery Cages Hot GalvanizedEgg Chicken Automatic Battery Cages Hot Galvanized


    3, Manure Conveying System
    1) Each tier has a separate drive unit with its own motor and can be operated independently of the others as needed.
    2) Rubber-coated drive roller ensure the manure belt no off-tracking during working.
    3) Pressure roller scrapers keep rollers clean for better tracking and improved pull of the manure belt.
    4) Imported PP manure belt.
    5) Plastic belt scraper cleans belt without cutting or damaging it. Each tier’s belt can be cleaned easily and individually.
    6) Stable motor to ensure the whole system working efficiently.

    Egg Chicken Automatic Battery Cages Hot GalvanizedEgg Chicken Automatic Battery Cages Hot Galvanized


    Total Solutions for Layer Cage Farm

    * Land design & layout

    * Farm process planning
    * Steel structure design
    * Environment control design
    * Layer cage system design
    * Feeding system design
    * Egg collection design
    * Farm water & electricity system design
    * Manure cleaning and management


    Hi-hope have an experienced after-sales team with 20 years already. And we have a specially-assigned people orgnised all the questions feedback by our valued customers. We will give a quick respond within 24 hours with your problems.

    Hi-Hope could offer you one stop service include:

    1- Farm Design Consulting
    2- Farm Layout/Design
    3- Turnkey Design-Build
    4- Steel Building Packages
    5- Poultry Equipment Packages
    6- Construction Supervision
    7- Construction Management Service ( Just for Philippines and Indonesia Market)
    8- Bio Security Facilities
    9- Organic Fertilizer/Chicken Manure Treatment
    10- Feed Processing Facilities & Buildings


    F
    or More Details, Welcome to Communicate with Email.Thanks!

    We Care More of Your Chicken!
